BR1010 Through Hole Single Phase Bridge Rectifier , Bridge Type Rectifier 10A 1000V

China Ningbo Anyo Import & Export Co., Ltd. certification
China Ningbo Anyo Import & Export Co., Ltd. certification
Time is flying away, remember the first time we met in Ningbo in the year of 2005. I'm so happy with you and your team. Thanks for your support and let's look forward to the next years together.

—— Mr. Halit vergili

From partner to friend, you always give me surprise for your goods and service. We appreciate it so much. By the way, the pickled fish sauce is so nice. I'm self-confident of my cooking skills again. Don't forgot hot pot date next time.

—— Ms. Nathalie Kruse

I'm Online Chat Now

BR1010 Through Hole Single Phase Bridge Rectifier , Bridge Type Rectifier 10A 1000V

BR1010 Through Hole Single Phase Bridge Rectifier , Bridge Type Rectifier 10A 1000V
BR1010 Through Hole Single Phase Bridge Rectifier , Bridge Type Rectifier 10A 1000V BR1010 Through Hole Single Phase Bridge Rectifier , Bridge Type Rectifier 10A 1000V BR1010 Through Hole Single Phase Bridge Rectifier , Bridge Type Rectifier 10A 1000V

Large Image :  BR1010 Through Hole Single Phase Bridge Rectifier , Bridge Type Rectifier 10A 1000V

Product Details:

Place of Origin: China
Brand Name: ANYO
Model Number: BR1010

Payment & Shipping Terms:

Minimum Order Quantity: 500ps
Price: Negotiation
Packaging Details: 2000pcs/carton, 10.9kg, 48*25*16cm
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 50000pcs per day
Detailed Product Description
Other Name: Bridge Rectifier Diode Reverse Voltage: 1000V
Forward Current: 10.0A Operating Temperature: -55℃~125℃
Mounting Position: Any Tjmax.: 150℃
High Light:

single phase bridge rectifier

,

bridge type rectifier

BR1010 through hole single phase type bridge rectifier 10A 1000V



Description:



A bridge rectifier is an array of semiconductor diodes configured as a bridge that acts to change AC (alternating current) to full-wave pulsating DC (direct current). It is used in many electronic devices including laptop computers, cellular phones and PDA's. Depending on how you're viewing the electronic component, the four diodes form a square or diamond pattern. In a single-phase bridge rectifier, there are four diodes; in a 3 phase bridge rectifier, there are six diodes.

When AC current is connected across one diagonal, DC current is available across the other diagonal. The four diodes allow full-wave rectification without the need for a center-tap on the transformer.



Single-phase bridge rectifier is the most frequently-used circuit for electronic dc power supplies. It requires four diodes but the transformer used is not center-tapped and has a maximum voltage of VSM. The full-wave bridge-rectifier is available in three distinct physics forms. The main advantage of this bridge circuit is that it does not require a special centre tapped transformer, thereby reducing its size and cost. The single secondary winding is connected to one side of the diode bridge network and the load to the other side.



Features:

Surage overload rating-200 amperes peak

Low forward voltage drop

• Small size; simple installation

Silver plated copper leads

Mounting position :Any

• Ceramic case



Application:

We can find this rectifier in a wide variety of electronic AC power devices like home appliances, motor controllers, modulation process, welding applications, etc.



Maximum ratings and electrical characteristics:

Rating at 25℃ ambient temperature unless otherwise specified. Resistive or inductive load,60HZ.
For capacitive load, derate current by 20%

Characteristics Symbol BR1010 Unit
Maximum recurrent peak reverse voltage VRRM 1000 V
Maximum RMS bridge input voltage VRMS 700 V

Maximum average forward.  Tc=50℃

Rectified output current         Tc=100℃

                                              Ta=50℃

VDC

10.0

6.0

6.0

A
Peak forward surage current 8.3ms single half sine-wave super impossed on rated load(JEDEC method) IFSM 200 A
Maximum forward voltage drop per bridge element at 5.0A VF 1.1 V
Maximum reverse current at rated DC blocking voltage per element @Ta=25°C IR

10.0

1.0

uA
Operating temperature rangeTJ TJ -55~115
Storage temperature range TA TSTG -55~150

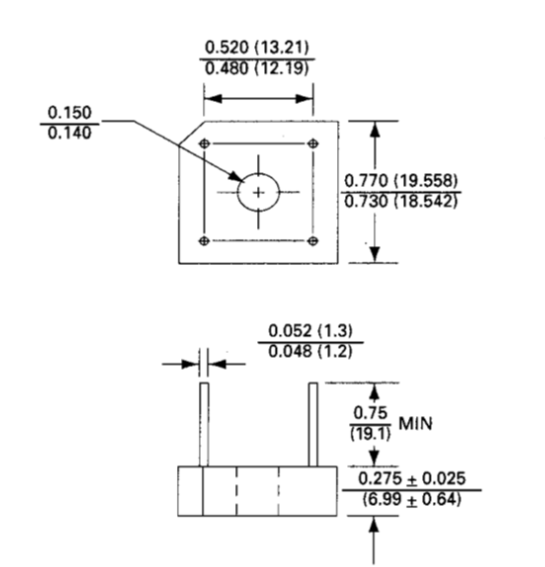

Dimension:(mm)
