High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating

High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating
High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating

Large Image :  High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: AY1044-1B

Payment & Shipping Terms:

Minimum Order Quantity: 2000pcs
Price: Negotiation
Packaging Details: Customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 100000 per day
Detailed Product Description
Other Name: Shunt Contact Resistance: 30mΩ Max.
Plating: Gold Insulation Resistance: 500MΩ Min.
Storage Temperature: -40~105℃ Color: Black, Blue, Yellow, White, Green, Red
High Light:

stereo headphone jack

,

mono headphone jack

,

aviation wire connectors

2.54mm Colorful Mini Jumper Connector Close Type With Height 6.5mm



Description:



Mini jumper create an electrical connection between two pin headers.



Material:



Insulator Thermoplastic (UL94V-0)
Contact Copper alloy
Contact plated

Full gold flash

Nickel

Gold+nickel



Specification:



Contact resistance 30mΩ max.
Dielectric withstanding voltage 250V AC (rms) for 1 minute
Insulation resistance 500MΩ Min.
Operating temperature -40~105℃

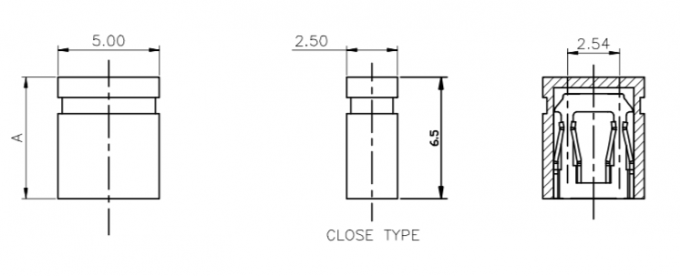

Dimensions: (mm)



High Precision 2.54mm Colorful Jumper Header Connectors Close Type Gold Plating 0
