| Other Name: | IDC Connector | Contact Resistance: | 30mΩ Max. |
|---|---|---|---|
| Pin Type: | Machined Pin | Insulation Resistance: | 1000MΩ Min. |
| Type: | Adapter | Color: | Black And Blue |
| High Light: | stereo headphone jack,mono headphone jack,aviation wire connectors |
||
D Shape Connector IDC Crimp Adapter Plug And Socket For Flat Ribbon Cable
Electrical characteristics:
| Contact resistance | 30mΩ Max. initial at DC 100mA |
| Dielectric withstanding voltage | 500V AC(rms) 50Hz for 1 minute |
| Insulation resistance | 1000MΩ Min. at 500VDC |
| Durability | 300 cycles |
| Temperature range | -40~105℃ |
Material:
Insulation: Thermoplastic UL94V-0
Contact: Copper alloy
Shell: Steel
Plating: Customized
Housing color: Customized

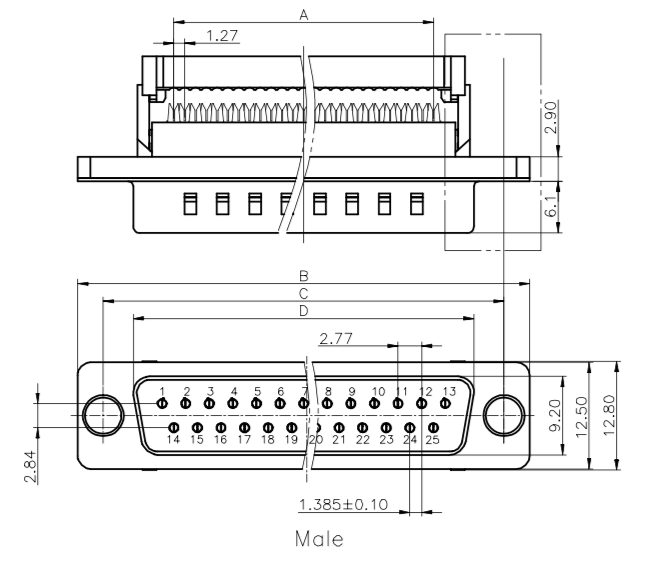

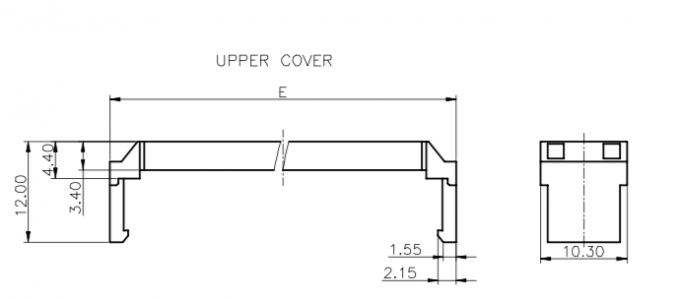

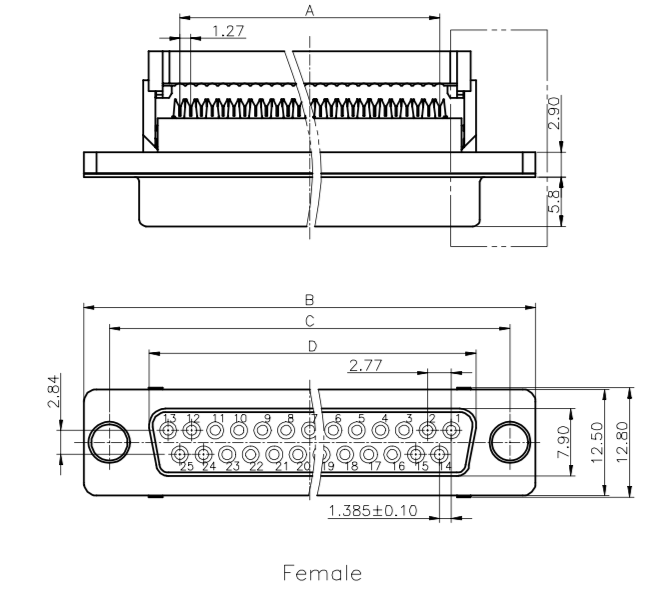

Dimensions: (mm)
| Position | A±0.1 | B±0.2 | C±0.2 | D±0.2 | E±0.2 | |
| Male | Female | |||||
| 9P | 10.16 | 30.80 | 24.99 | 17.90 | 16.33 | 19.00 |
| 15P | 17.78 | 39.14 | 33.32 | 26.50 | 24.66 | 27.34 |
| 25P | 30.48 | 53.04 | 47.04 | 40.00 | 38.38 | 41.24 |
| 37P | 45.72 | 69.32 | 63.50 | 56.50 | 54.84 | 57.52 |
