TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection

TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection
TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection

Large Image :  TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection

Product Details:

Place of Origin: CHINA
Brand Name: ANYO
Model Number: TVR-F

Payment & Shipping Terms:

Minimum Order Quantity: 10000pcs
Price: Negotiation
Packaging Details: Customized carton
Delivery Time: 8-10 work days
Payment Terms: L/C, T/T
Supply Ability: 50000pcs per day
Detailed Product Description
Other Name: Zinc Oxide Varistor Structure: Y Kink Lead
Body Size: Φ5mm, 7mm, 10mm, 14mm, 20mm Tolerance: ±10%
Packaging: Tape & Reel Packing Solderability: 245±3℃, 3±0.3 Sec

TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection



Applications:


Power supply
• Home appliance
• Industrialequipment
• Telecommunication or telephone system 5. Smartmeter
• PLC (Power line communication)
• Lighting products
• Photovoltaic industry

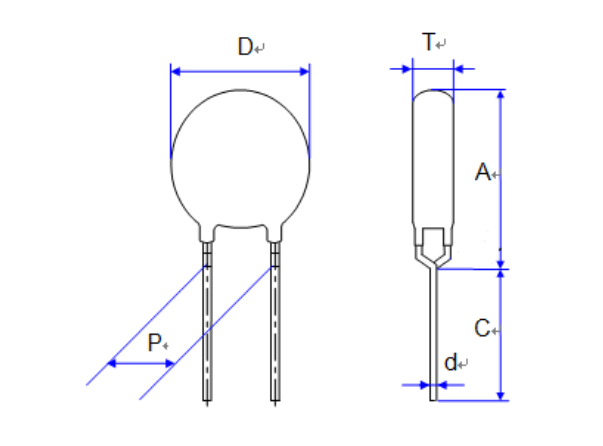

Dimensions:



TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection 0



Series D Cmin. d P Amax.
TVR05 5.0~7.0 20 0.6±0.02 5.0±0.5 (forTVR05180-561)
5.0±1.0 (for TVR05621-751)
9.5
TVR07 6.5~9.0 20 0.6±0.02 5.0±0.5 (forTVR07180-561)
5.0±1.0 (for TVR07621-821)
11.5
TVR10

9.5~12.5

9.5~13.5

(For TVR10182)

20 0.8±0.02 7.5±0.5 (forTVR10180-561)
7.5±1.0 (for TVR10621-182)
16.0
TVR14 13.5~16.0 20 0.8±0.02 7.5±0.5 (forTVR14180-561)
7.5±1.0 (for TVR14621-182)
19.0
TVR20 19.5~22.0 20 1.0±0.02 10±1

26.5





Soldering Recommendation:

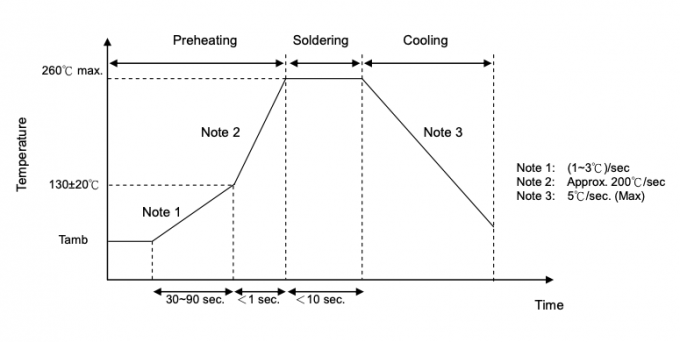

• Wave Soldering Profile



TVR Series Y Kink Lead Type Zinc Oxide Varistor For High Surge Protection 1



Recommended Reworking Conditions With Soldering Iron:



Item Conditions
Temperature of soldering iron-tip 360℃ (max.)
Soldering time 3 sec (max.)
Distance from varistor 2mm (min.)
