| Normal toplam direnç: | 100-1MΩ | Direnç toleransı: | ±%25 |
|---|---|---|---|
| İletişim Direnci Varyasyonu: | % 5 | Dayanım Gerilimi: | 50V |
| Etkili elektrik seyahati: | 240±20° | Anma Gücü: | 0,15 W |
| Çalışma Sıcaklığı Aralığı: | -40~+100℃ | TCR sıcaklık katsayısı direnci: | ±250PPM/℃ |
| Dönme hayatı: | 200 daire | Toplam mekanik dönüş açısı: | 270±20° |
| Dönme torku: | 1~12 mN*m | Son durdurma gücü: | ≥15mN*m |
FEATURES:

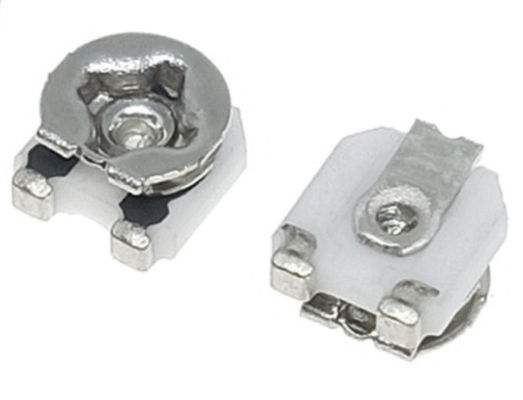

• Space Saving Size 1.3mm in height
• With stopper
• Easily adjusts with standard screwdriver.
• Metal-glaze resistance element gives excellent stability and protection against environmental factors.
• Can be mounted to a circuit board with adhesive.
• Designed for reflow soldering.

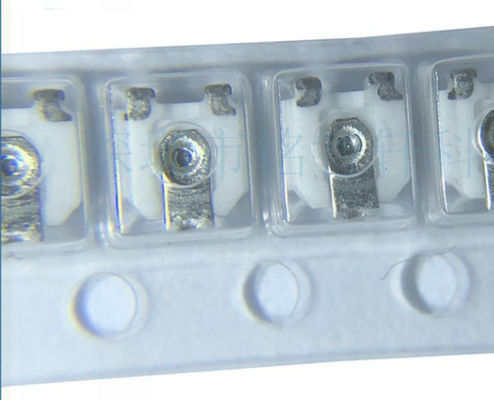

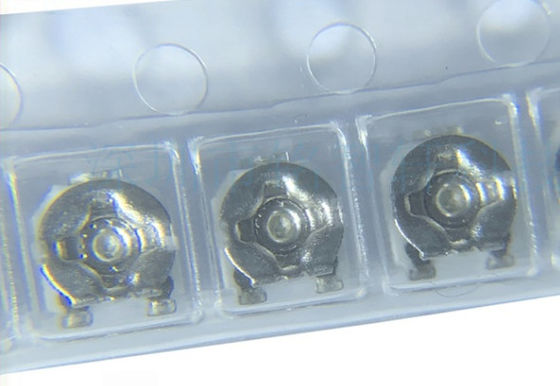

• Supplied in 8mm tape for automatic assembly equipment.
• Conform RoHS
• APPLICATIONS : Video equipment, industrial equipment and other general electronic equipment.
SPECIFICATIONS:
| Operating Temperature Range | －40 to 100℃ |
| Rated Power | 0.15Ｗ at 70℃ |
| Maximum Rated Voltage | AC50V, DC50V |
| Nominal Total Resistance | 100Ω, 200Ω, 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ, 20kΩ, 50kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ |
| Total Resistance Tolerance | Within ±25% of the nominal total resistance |
| Resistance Taper | B(Linner Taper :JIS 0B) |
| Resistance Temperature Coefficient | Within ±250ppm/℃ |
| Total Rotational Angle | Endless(effective rotational angle 250±20°) |
| Rotational Torque | 1 to 12mN・m |
| Endurance(Sliding) | 20cycles(10cycles at 100Ω) |
| Weight at 1 pcs | 40mg |
APPLICATIONS:
CAMERA built-in VCR, 8mm VCR, VCR camera, still camera, headphone stereos, LCD television, disk drive, bar code equipment, radar detectors, hand held equipments.
REFLOW SOLDERING REQUIREMENTS:
• Manual Soldering: In case of soldering by a soldering iron, it shall be finished within 3 seconds and the temperature of the tip of the soldering iron shall be 350℃ max.
• Flux Rinsing: After reflow soldering operation, part may be used without rinsing, if flux is well controlled. In case flux rinsing is done, flux shall be removed sufficiently.
External dimensions:
Packing specification:
